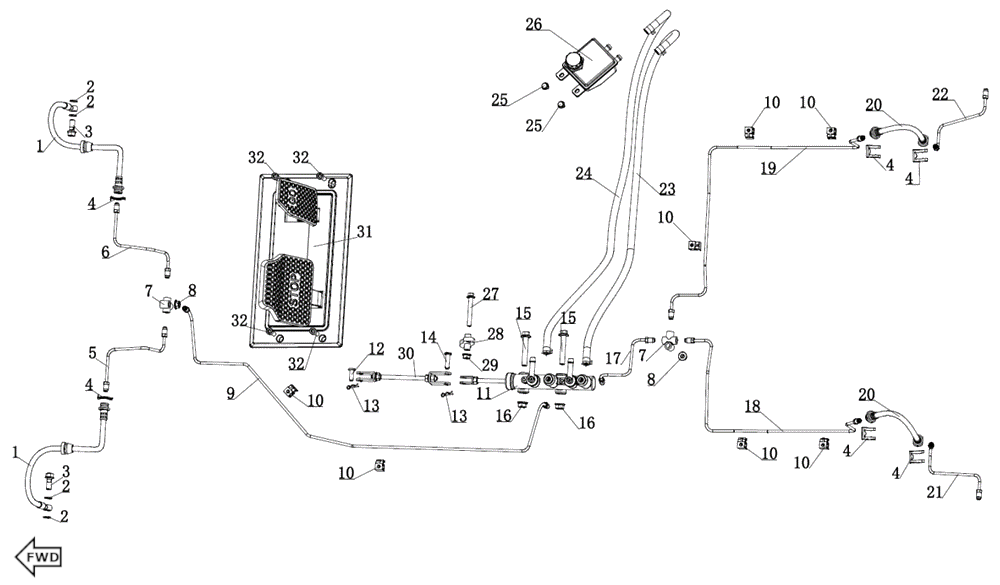

HYDRAULIC BRAKES
| Ref# | Part | Price | Qty |
|---|---|---|---|
| 1 |
Brake Hose Assembly (Front) |
$32.94 | |
| 2 |
Sealing Gasket |
$5.50 | |
| 3 |
Hollow Bolt |
$8.23 | |
| 4 |
Hose Clamp |
$8.23 | |
| 5 |
Brake Line (Front Driver Side) |
$20.58 | |
| 6 |
Brake Line (Front Passenger Side) |
$20.58 | |
| 7 |
Tee Adapter |
$25.73 | |
| 8 |
Hexagon Flange Lock Nut - M8×1.25 |
$4.70 | |
| 9 |
Brake Line (Connection Line 1) |
$44.59 | |
| 10 |
Brake Line Mounting Clip |
$10.97 | |
| 11 |
Brake Master Cylinder Assembly |
$100.15 | |
| 12 |
Clevis Pin - 8×22 |
$10.97 | |
| 13 |
Cotter Pin |
$5.50 | |
| 14 |
Clevis Pin - 8×30 |
$10.97 | |
| 15 |
Hexagon Flange Bolt - M10×1.25×60 |
$7.00 | |
| 16 |
Hexagon Flange Lock Nut - M10×1.25 |
$3.50 | |
| 17 |
Brake Line (Connection Line 2) |
$20.58 | |
| 18 |
Brake Line 1 (Rear Driver Side) |
$27.56 | |
| 19 |
Brake Line 1 (Rear Passenger Side) |
$30.87 | |
| 20 |
Brake Hose Assembly (Rear) |
$14.11 | |
| 21 |
Brake Line 2 (Rear Driver Side) |
$11.76 | |
| 22 |
Brake Line 2 (Rear Passenger Side) |
$11.76 | |
| 23 |
Brake Fluid Reservoir Hose 1 |
$30.87 | |
| 24 |
Brake Fluid Reservoir Hose 2 |
$30.87 | |
| 25 |
Hexagon Flange Bolt - M6×1×16 |
$4.70 | |
| 26 |
Brake Fluid Reservoir |
$22.74 | |
| 27 |
Hexagon Flange Bolt - M8×1.25×60 |
$4.70 | |
| 28 |
Connecting Plate for Brake Master Cylinder |
$20.58 | |
| 29 |
Hexagon Flange Lock Nut - M8×1.25 |
$8.23 | |
| 30 |
Connecting Rod for Brake Master Cylinder |
$15.68 | |
| 31 |
Combined Pedal Assembly |
$374.75 | |
| 32 |
Allen Head Screw - M8×1.25×25 |
$4.70 |
