SEATS

KANDI Parts : GOLF CART : Kruiser 4P PRO Forward

Hover to zoom

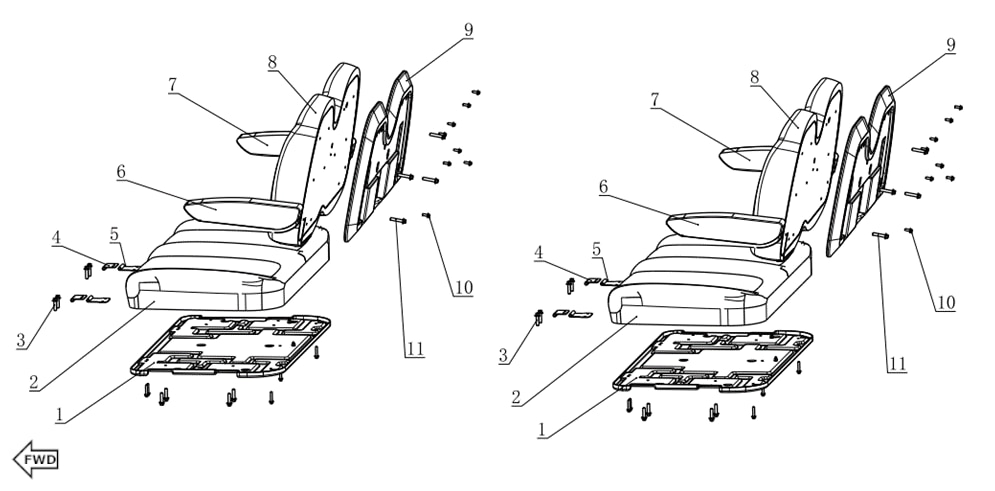

Ref#	Part Info	Price
1	M1203-7203031SQ M1203-7203031SQ Seat Cushion Mounting Panel	$78.75
2	M1224-7203020 M1124-7203010 Front Seat Cushion	$349.98
3	Q2140622F33 Q2140622F33 Phillips Pan Head Screw - M6×1×22	$4.71
4, 5	M1203-7209040 (4,5) M1203-7209040 Hinge	$30.38
6	M1224-7205033 M1224-7205033 Armrest PRO (Driver Side)	$69.97
7	M1224-7205038 M1224-7205038 Armrest PRO (Passenger Side)	$69.97
8	M1224-7205020 (8) M1224-7205020 Backrest Cushion PRO (Armrests Not Included)	$278.25
9	M1203-7205031SQ (9) M1203-7205031SQ Seatback Panel	$68.60
10	Q1840616T1F33 (10) Q1840616T1F33 Hexagon Flange Bolt - M6×1×16	$4.71
11	Q1840830T1F6 (11) Q1840830T1F6 Hexagon Flange Bolt - M8×1.25×30	$4.71
