Odes Parts : UTV : X2-800LT (2019 & Newer)

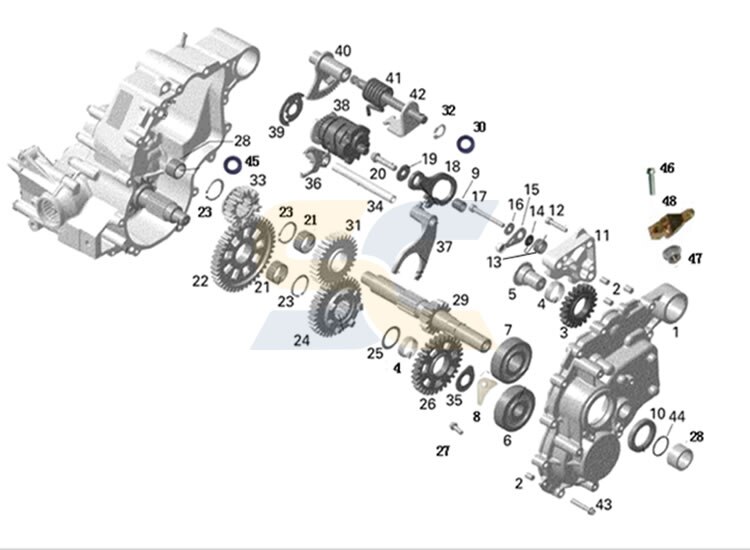

GEAR BOX 1
| Ref# | Part | Price | Qty |
|---|---|---|---|
| 1 |
Gear Housing Right Cover |
$96.52 | |
| 2 |
Center Pin 8x12 |
$5.65 | |
| 3 |
Intermediate Gear 21Th |
$41.80 | |
| 4 |
Bearing-Needle K252910 |
$10.50 | |
| 5 |
Intermediate Gear Shaft |
$32.06 | |
| 6 |
Bearing-BallÊ6403 |
$37.63 | |
| 7 |
Ball Bearing 6305 |
$33.45 | |
| 8 |
Bearing Set Plate |
$5.65 | |
| 9 |
Sleeve Of Lock Lever 14x10x15 |
$6.98 | |
| 10 |
Oil Seal 32x47x7 |
$13.38 | |
| 11 |
Support Fixing Block |
$33.45 | |
| 12 |
Allen Screw-Socket |
$5.65 | |
| 13 |
Index Spring |
$5.65 | |
| 14 |
Step Ring |
$5.52 | |
| 15 |
Index Lever |
$6.37 | |
| 16 |
Washer |
$5.65 | |
| 17 |
Screw-Allen 6x55 |
$5.65 | |
| 18 |
Parking Lock Level Assembly |
$36.60 | |
| 19 |
Washer 24x8.5x2 |
$5.65 | |
| 20 |
Hex Flange Bolt 8x35 |
$5.65 | |
| 21 |
Bearing-Needle |
$13.61 | |
| 22 |
Revel Low Range Gear 43Th |
$98.77 | |
| 23 |
Circlip for shaft |
$5.65 | |
| 24 |
Revel High Range Gear 34Th |
$145.97 | |
| 25 |
Thrust Washer 34X25X1 |
$7.53 | |
| 26 |
Revel Reverse Gear 31Th |
$79.60 | |
| 27 |
Hex Bolt 6X16 |
$5.65 | |
| 28 |
Distance Ring 32x25x11.4 |
$5.31 | |
| 29 |
Main Shaft Z=14 |
$147.51 | |
| 30 |
Spacer 20x12.5x1 |
$5.65 | |
| 31 |
Gear Pinion, 29 Teeth |
$107.46 | |
| 33 |
Main Low Range Gear 20Th |
$79.60 | |
| 34 |
Fork Spindle |
$6.58 | |
| 35 |
Thrust Washer Set |
$7.53 | |
| 36 |
Little Shift Fork |
$39.73 | |
| 37 |
Big Shift Fork |
$29.96 | |
| 38 |
Shift Drum Assembly |
$114.91 | |
| 39 |
Isolating Washer |
$6.58 | |
| 40 |
Shifting Gear |
$29.27 | |
| 41 |
Retern Spring |
$6.98 | |
| 42 |
Gear Shift Spindle |
$32.95 | |
| 43 |
Hex Bolt 6X35 |
$5.65 | |
| 45 |
Washer 30x18x2 |
$7.53 | |
| 46 |
Hex Bolt 6X25 |
$5.65 | |
| 47 |
Hex Nut 6 |
$5.65 | |
| 48 |
Shift Arm |
$4.71 |
